Creating a Multi-Window Desktop App with Vercel Native SDK

Native SDK is Vercel's toolkit for building native desktop apps with TypeScript or Zig. Instead of rendering using an embedded browser or the operating system's web view, Native SDK opens native windows and renders the UI widgets in the windows using a proprietary 2d rendering engine written in Zig.

Getting Started

I started with the boilerplate app using `native init` but quickly found out that because it uses the managed mode with TypeScript, it didn't expose the ability to open multiple windows. I then created a new boilerplate app using `native init --template zig-core` which exposed the ability to create multiple windows using Zig code at the expense of not using TypeScript.

App Details

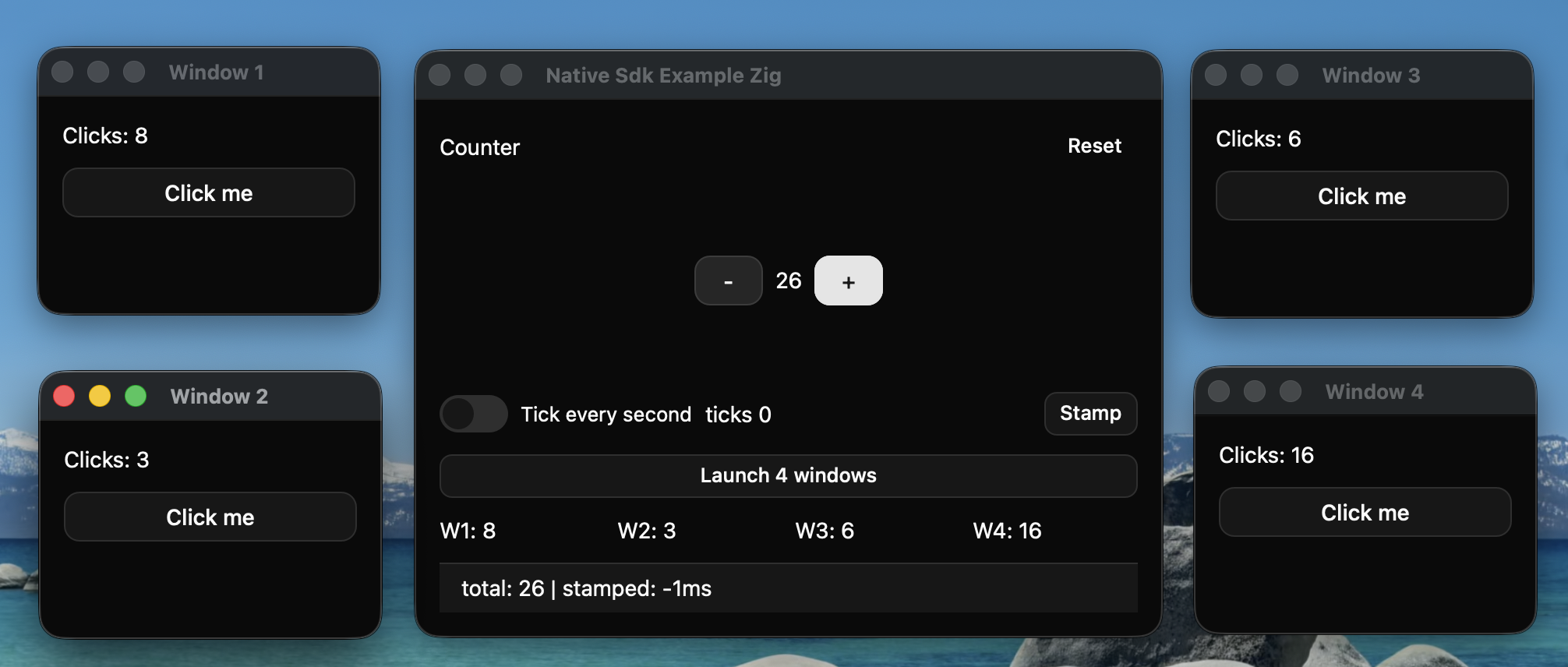

Started with zig-core boilerplate, and added 4 simple windows alongside the main one.

File Size, CPU and RAM Usage

For the following stats, I tested on a `MacBook M5` with native-sdk version 0.5.1 installed.

1. File Size

   1. Compiled to a binary with the filesize of ~4.1MB (This was just the binary, so it did not include an icon, info.plist, etc that would go into a .app package.)

2. CPU Usage

   1. With single window opened

      1. Ran at .1% CPU while idle.

      2. Ran at ~6 to ~7% CPU while in use (clicking the increment button over and over)

   2. With multiple windows opened

      1. Ran at .1% CPU while idle.

      2. Ran at ~7.4 to ~8.5 CPU while in use (clicking the increment buttons over and over on multiple windows)

3. RAM Usage

   1. With single window opened

      1. Used `~110.7MB` of RAM while idle

      2. Used `~133.4MB` of RAM while in use (clicking the increment button over and over)

   2. With multiple windows opened

      1. Used 130.8 MB of RAM while idle after launching 4 new windows in addition to the main one

      2. Use 185.% MB of RAM while in use on 5 windows (clicking the buttons over and over on 5 windows)

Multi-Window Functionality

macOS Doc

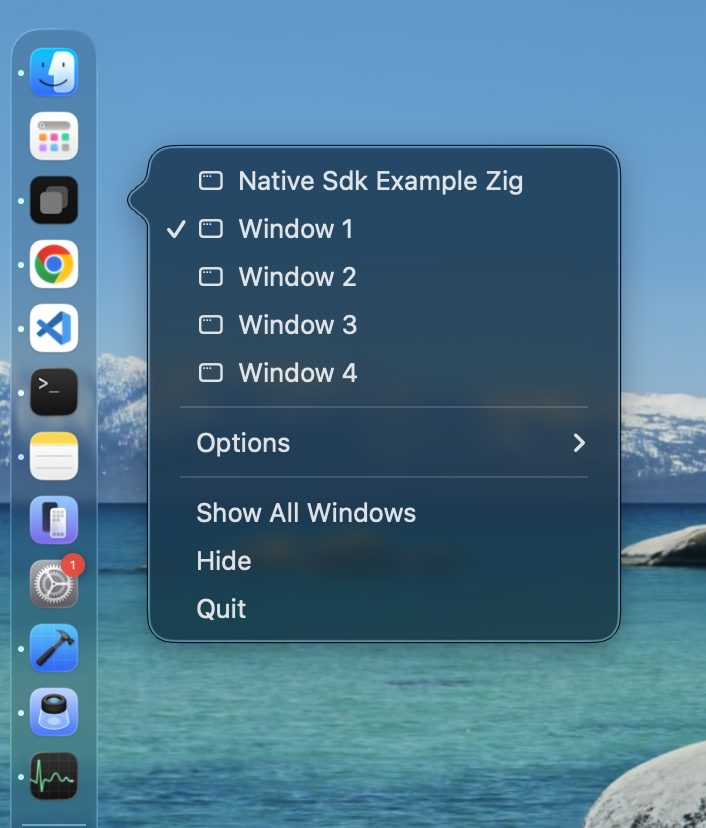

The macOS Dock showed all five windows as expected.

macOS Spaces

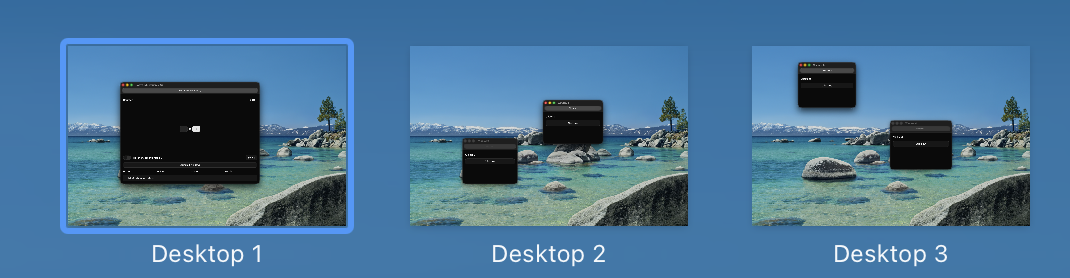

Each window could be moved to a separate macOS space allowing for end user flexibility.

General Window Features

Liquid Glass

Liquid Glass for macOS 26+ did not appear to be supported as of version 0.5.1.

Transparent Windows

Transparent windows did not appear to be supported as of version 0.5.1. See appkit_host.m where it hard-codes `metalLayer.opaque = YES;`

Always On Top

Always On Top did not appear to be supported as of version 0.5.1.

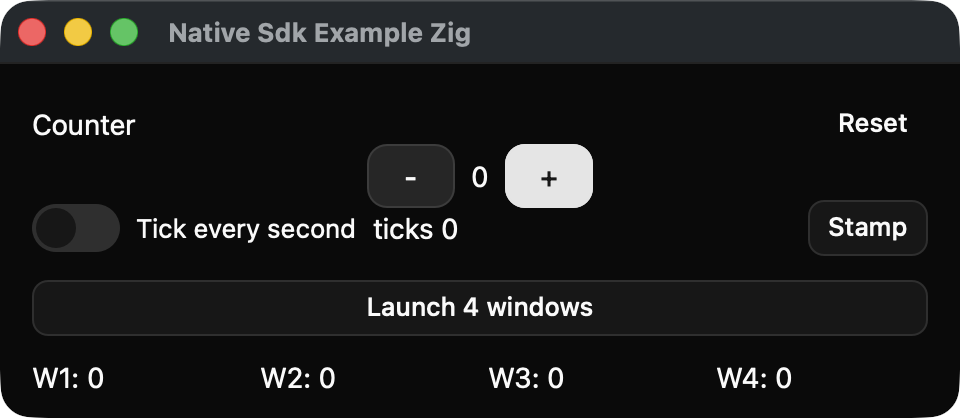

Transparent Titlebar

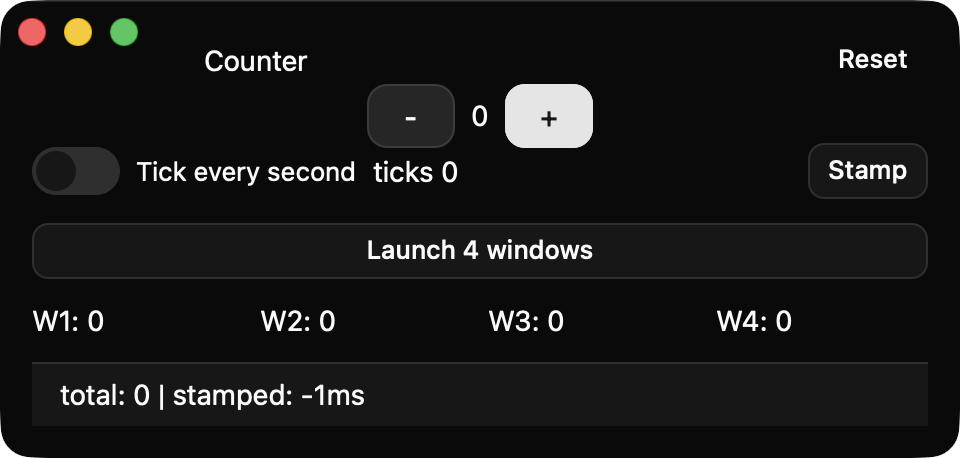

Using `.titlebar = "hidden_inset"` I was able to make the titlebar be transparent so it blended in with the body of the app. I used `window-drag="true"` on an element to be able to move the window.

Borderless / Chromeless Windows

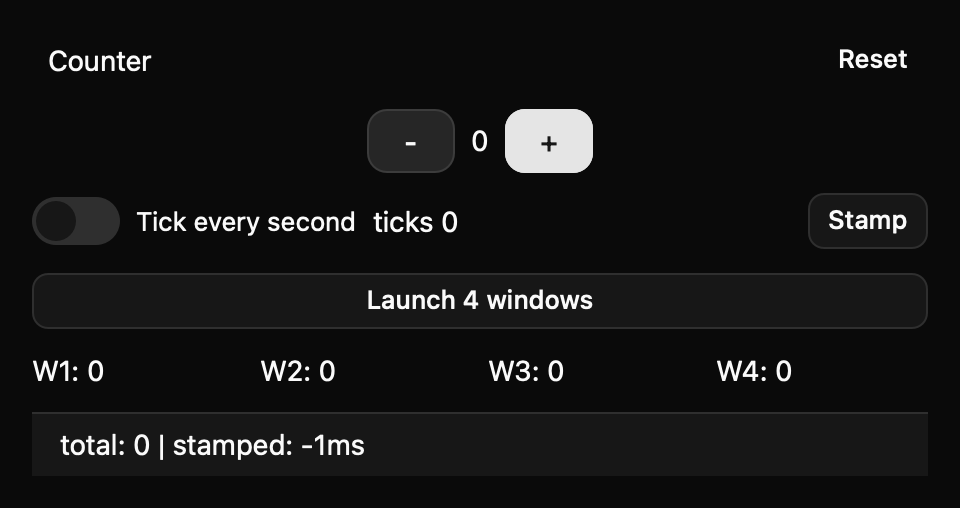

Using `.titlebar = "chromeless" I was able to remove the native chrome and render a borderless window. I used `window-drag="true"` on an element to still be able to move the window.
